How It Works
INTRODUCTION
Shakti make Ribbon Blenders consist of a U-shaped horizontal trough and a specially fabricated ribbon agitatorand widely accepted in Pharmaceuticals, Chemicals, Cosmetics, Agrochemicals, Pigments, Paint,and Food& Dairy. The outer ribbon moves materials in one direction and the inner ribbon moves the materials in the opposite direction. The ribbons rotate at approx. 50 RPM moves materials both radially and laterally to ensure thorough blends in short cycle times. Ribbon agitators are used for blends that will be between 40 and 100% of the rated capacity of the blender. Objective is to handlethe large dry and wet volume which may be heat sensitive.
Ribbon Blendersare the result of the smart use of latest technologies to achieve the fine quality blending output. Ribbon Blender is a light duty blender, useful for easy mixing powder components via LOW SHEAR Mixing, most commonly used for SOLID to SOLID or SOLID to LIQUID Mixing and when high shearing force is not considered.
Shakti in house Designed counter flow ribbon blades mounted on shaft to suitdesired output. Blades are designed for mixing and suitable for product end characteristics at the room temperature or any controlled temperature.
INDUSTRY
Suitable for Agri, Pharma, chemical industries, Pigment, Paint, Bio-Tech, food & Dairy
APPLICATION
- To Mixcosmetic, Pharma, Granule or fine powders
- To dry mixing of free flow powders which need low shearing force
- To dry blending in pharma, Agri, paint, cosmetic, Herbal formulation
- To Lubricate of dry granules in bulkVolume
Materials
Ribbon Blender is ideal for products like pharmaceutical materials, insecticides, pesticides, food material like Dry powder, talcum powder, spices, granules, low-viscosity powder or mixed paste
STANDARD
SEW Blenders are available from in various sizes from 100 to 10000 Litres of capacity, alwaysavailable in ready stock
MATERIAL OF CONSTRUCTION
SEW Ribbon Blenders are offered in MILD STEEL, SS 304 & SS 316 MOC
OPERATING TEMPERATURE
Standard Operating Temperature up to 50°C, May be customized & controlled to suit your process requirements
MOUNTING
Standard Design Mountings with Structural Pads
SHAKTI CUSTOMIZATION
- Inlet Hoper, Platform for Material Feeding
- Knife Edge Gate Valve for Material Discharge
- Spraying Nozzle at the top
- Variable Speed Gear Box (Inline Helical, Parallel)
- Control Panel or VFD Option
- Safety Grills on the top of Inlet, Safety Cover on Drive Systems
- Top Door (Fixed, Hinged, Partition type)
- Ribbon Design (helical internal, outer)
ADVANTAGE
- Feeding port in top center with inline mounting arrangements
- No leakage assurance due to our in house gland design
- High Tensile hardware used in
- Drive systems are Standards make like Elecon, PBL, Premium, Bharat Bijlee or Crompton
SEW RIBBON DESIGN
RIBBONS are specially in house design to suit variety of materials and desired output Internal Helix, Outer Helix, Mix & Helix Ribbon with paddle combination are available options As shown in above images those Ribbons are mounted or welded on a rotating shaft

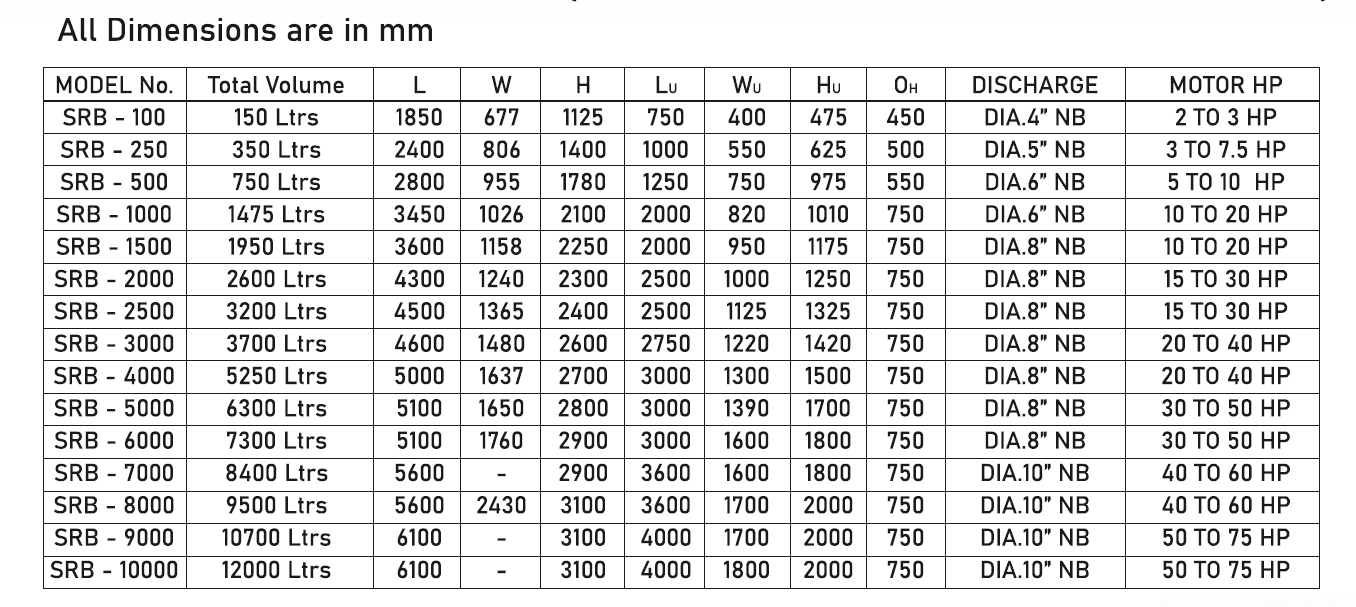

TECHNICAL SPECIFICATIONS
Dimension shown above with respect to standard GA, SEW reserve the rights to change design, confirm with your capacity and customization needed
